Dante AVIO Adapters let you use your favorite legacy audio gear with any Dante-connected system, delivering the interoperability, performance and scalability that only networking can bring. Cost-effective, compact and built for the road, Dante AVIO adapters bring the modern connectivity that every audio pro needs in their toolbox.

AVIO Adapter on Graphics

Analog Inputs

Dante AVIO 2 Channel Analog Input Adapter

Analog Input from MixerDante AVIO Analog Inputs let you use analog audio line-level source gear you already own to feed any Dante-connected
system. Don’t abandon trusted mixing consoles, wireless mics and other analog sources – adapt them to the world of
audio networking with Dante AVIO. Available in 1- and 2-channel versions.

  • Connect legacy mixers and consoles to a Dante network
  • Patch DSPs, analog compressors and equalizers into a Dante system using a combination of Dante AVIO Input and Output adapters
  • Connect stage DI boxes and keyboard instruments directly to a Dante network

Analog Outputs

Dante AVIO 2 Channel Analog Input Adapter

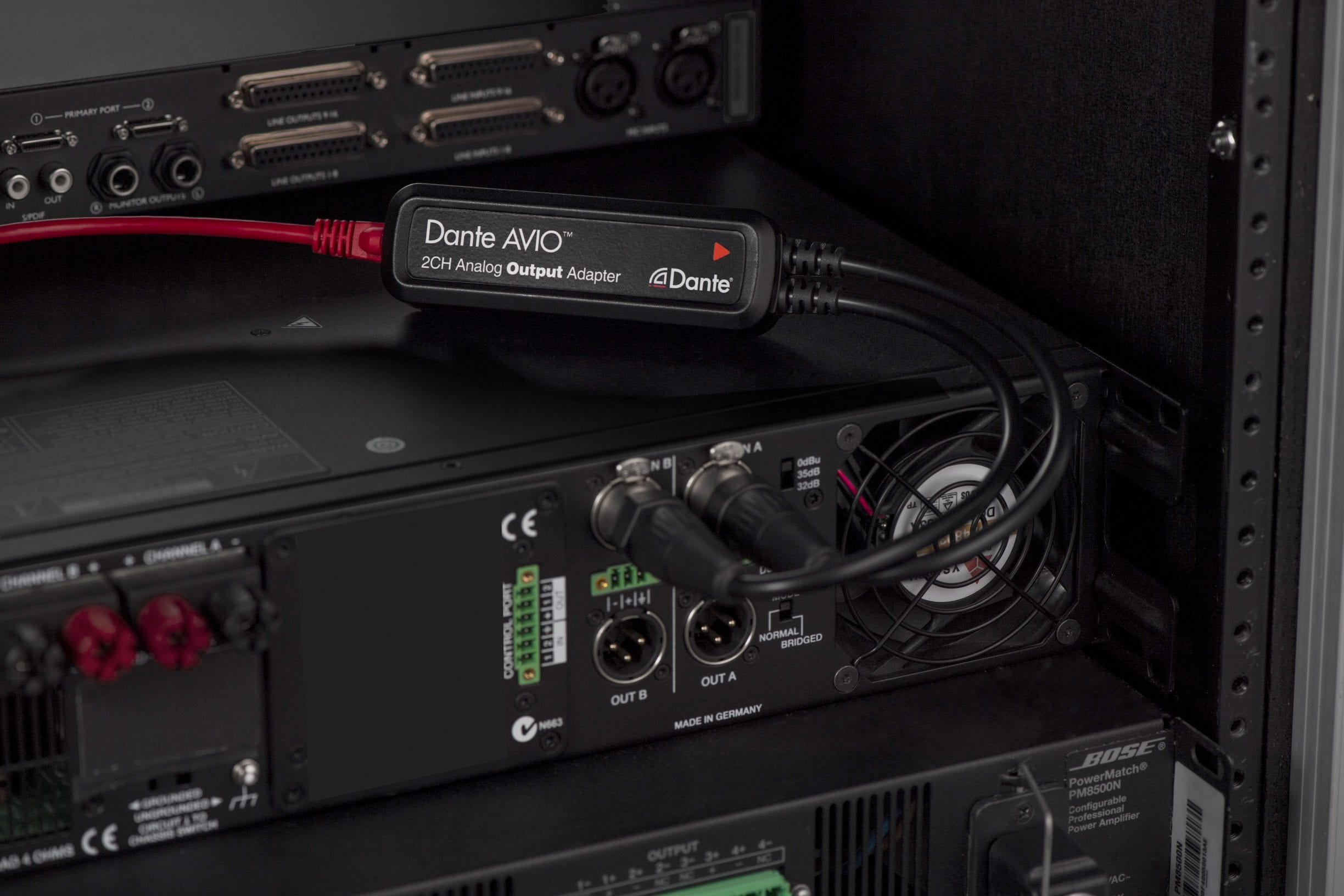

Dante AVIO 2 Channel Analog Output Adapter connected to powered speakersDante AVIO Analog Outputs let you drive analog line-level products you already own from any Dante-connected system.
Bring your amplifiers, powered speakers and more to the world of audio networking with Dante AVIO. Available in 1-
and 2-channel versions.

  • Send audio to analog power amplifiers and powered speakers over a Dante audio network
  • Patch DSPs, analog compressors and equalizers into a Dante system using a combination of Dante AVIO Input and Output adapters
  • Create easy drop-points for connecting overflow areas to a Dante network




AES3

Dante AVIO 2 Channel Analog Input Adapter
Dante AVIO 2 Channel AES Adapter and DSP

The Dante AVIO AES3/EBU Adapter lets you use your favorite digital audio gear on a Dante audio network. Don’t abandon
great AES3-connected amplifiers, DSPs and mic preamps – adapt them to the world of audio networking with Dante AVIO.

  • Send audio to analog power amplifiers and powered speakers over a Dante audio network
  • Patch DSPs, analog compressors and equalizers into a Dante system using a combination of Dante AVIO Input and Output adapters
  • Create easy drop-points for connecting cry rooms and overflow areas to a Dante network






USB

Dante AVIO 2 Channel Analog Input Adapter

Dante AVIO 2 Channel Analog Input AdapterThe Dante AVIO USB Adapter lets you connect any computer to a Dante audio network with zero software installation,
and can be used with any audio application for playout or recording. Ideal for conference rooms and presentation
events.

  • Easy audio drop-point for laptops in conference settings, no need to reconfigure your Dante network for different
    computers
  • Record or playout 2-channel audio from any PC or Mac with no additional software at all
  • Connect mobile devices to a Dante network (with USB adapters)




Specifications

Four types of Dante AVIO Adapters will be available, including one- and two-channel versions of the analog input and
analog output adapters.

Feature Matrix
Analog Input
1 Ch
Analog Input
2 Ch
Analog Output
1 Ch
Analog Output
2 Ch

AES3 I/O
2 In 2 Out

USB I/O
2 In 2 Out
Max signal level (balanced)
+24dBu / +4dBu / 0dBu
0dBV /-10dBV
+18dBu /
+4dBu / 0dBu0dBV /-10dBV
Frequency Response
20Hz to 20kHz (-/+0.5dB)
20Hz to 20kHz (-/+0.5dB)
Impedance
20k Ohm balanced
10k Ohm unbalanced
150 Ohm balanced
75 Ohm unbalanced
110 Ohm balanced
Dynamic Range
> 100dB
> 100dB
Signal to Noise Ratio
> 100dB
> 100dB
> 135dB
Total Harmonic Distortion
< 0.01% at +4dBu
< 0.01% @ +4dBu
Connectors
RJ45 & 1 XLR-F
RJ45 & 2 XLR-F
RJ45 & 1 XLR-M
RJ45 & 2 XLR-M
RJ45, 1 XLR-M, 1 XLR-F
RJ45 & USB Type A
Power
Class 1 802.3af PoE
Class 1 802.3af PoE or USB
Asyn­chronous Sample Rate Conversion
Yes
Sample Rates
44.1, 48, 96 kHz
48 kHz
Bit Depths
24
Network Transport
Dante Audio over IP, AES67 RTP
USB
Class Compliant
Part Number
