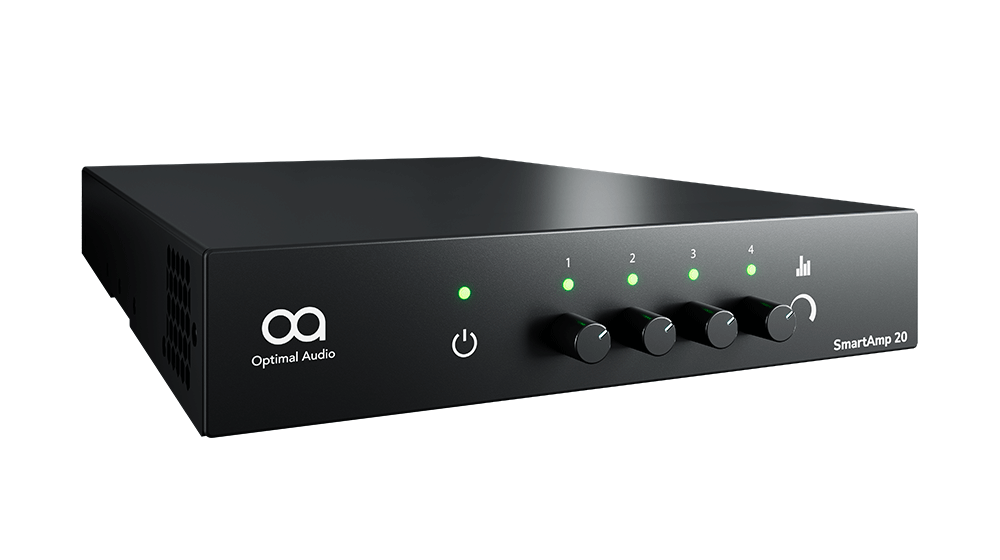

SmartAmp 20

173,785 (205,066 Inc. GST @ 18%)

No Cost EMI starts at
17,089/month

EMI Options →
GST invoice available

4 x 125W amplifier with integral DSP

DATASHEET USER GUIDE
Features
  • Desktop or rack mounted
  • Signal processing presets for Optimal Audio loudspeakers
  • 125 watts per channel into 4Ω-16Ω and 70V-100V line loudspeaker loads
  • Power sharing technology enables 250 watts from two pairs of channels

Not in Stock, Pre-order Only

Description

Bars/Restaurants & Cafes


Retail

Wedding Venues

Hotels

Education Facilities

Houses of Worship

Corporate Offices

Museums

Fitness Studios

Residential

SmartAmp 20 is an amplifier with built in Digital Signal Processing (DSP) specifically tailored to optimise the performance of the Optimal Audio loudspeaker range.

This four-channel power amplifier can drive either conventional low impedance or 70V – 100V loudspeaker loads. Internal DSP presets of Optimal Audio loudspeakers are selected by switches to the rear of the amplifier, which enable the appropriate EQ and overload protection settings.

The space efficient half-width, 1U, 19” rack housing enables two units to be mounted side by side with a SmartAmp 10 or another SmartAmp 20, allowing up to 8 channels in a 1U space.

The SmartAmp 20 is capable of a maximum of 250W output shared between each pair of channels. This enables SmartAmp 20 to flexibly deliver power required for each channel within a pair, depending on the system requirement. For example, if one channel was to only be using 20W of power for some Up speakers, the other channel in the pair could deliver the remaining 230W of power for a more demanding application.

Power factor Correction power supply technology enables universal AC mains operation, eliminating the need for local market specific power regulation and potential reliability issues. The power supply delivers consistent, regulated power worldwide with ultra low standby power consumption for EuP2103 and energy star compliance.

Specifications

TYPECLASS D power amplifier with DSP
POWER OUTPUT (4Ω -16Ω)4 x 125W
70V-100V OUTPUT4 x 125W
DIGITAL SIGNAL PROCESSINGEQ & limiter presets for Optimal Audio loudspeakers
COOLINGForced air cooling with fan
ANALOGUE IN/LINK4 balanced line inputs on Euroblock connectors
ANALOGUE INPUT IMPEDANCE10kΩ unbalanced, 20kΩ balanced
MAXIMUM ANALOGUE INPUT LEVEL+24dBu
AMPLIFIER OUTPUTSEuroblock
SIGNAL TO NOISE RATIO> 100 dB (A-weighted, 20 Hz – 20 kHz, 8 Ω load)
FREQUENCY RESPONSE20 Hz – 20 kHz (+0/-0.25 dB (8 Ω load, 3 dB below rated power)
TOTAL HARMONIC DISTORTION< 0.05 % (20 Hz – 20 kHz, 8 Ω load, 3 dB below rated power)
SLEW RATE8.796V/µS at 70 V peak, low impedence, 17.77V/µS at 100 V peak, high impedence
DAMPING FACTOR370 with 8Ω load
CONTROL AND MONITORINGGPIO
DSP SAMPLE RATE48kHz
MAINS POWER INPUTUniversal Mains, 100-240V, 50-60Hz
MAINS CONNECTORIEC
POWER CONSUMPTION150W
HEAT GENERATED540 kJ per hour
DIMENSIONS(W) 220mm x (H) 44mm x (D) 353mm
(W) 8.67” x (H) 1.73” x (D) 13.90”
WEIGHT2.4kg (5.3lbs)

Drawings

SmartAmp-20

Accessories (available separately)

  • Rear rack support kit
  • Wall/desktop mount kit
