Cuboid 5

₹13,903 – ₹13,904

No Cost EMI starts at
₹
1,367/month
EMI Options →
GST invoice available

Two-way, full range, passive, 5” loudspeaker

DATASHEET USER GUIDE
Features
  • Discreet size, high performance
  • Portrait or landscape mounting options
  • Wall bracket included
  • Max SPL 105dB (continuous) 111dB (peak)
  • 130° horizontal x 120° vertical coverage
  • IP54 for outdoor use with accessory terminal cover
Not in Stock, Pre-order Only
SKU: Cuboid 5 Categories: , Tags: , , , , , , , , , , , , , ,

Description

Bars/Restaurants & Cafes

Retail

Wedding Venues

Hotels

Education Facilities

Houses of Worship

Corporate Offices

Museums

Fitness Studios

Residential

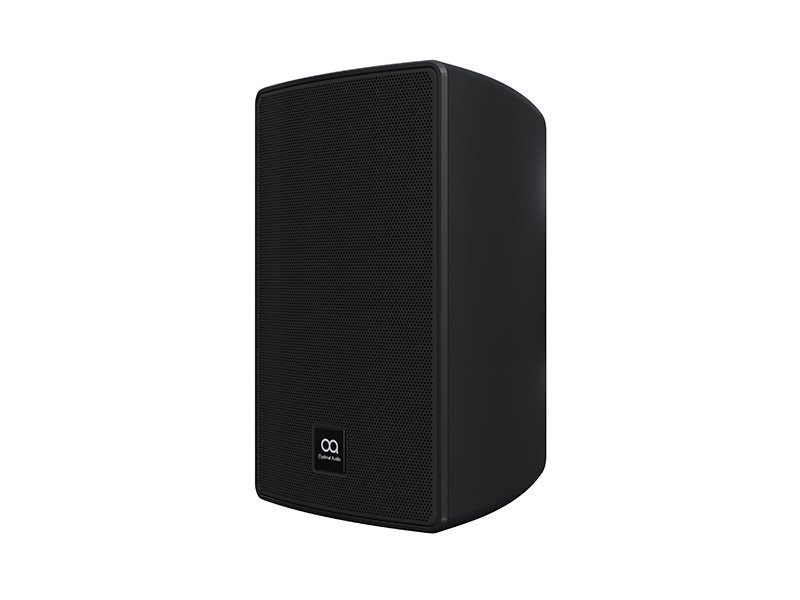

Cuboid 5 is a full range, two way, passive 5” loudspeaker designed to give exceptional sound quality in a very small form factor, for distributed applications with high quality background music and speech reproduction.With its attractive design and included mounting hardware, Cuboid 5 can be fixed in either portrait or landscape orientation for simple and flexible installation. A weatherproof terminal cover is available for outdoor use, bringing the rating to IP54.

Cuboid features a 5.25” low frequency driver and a 0.75” silk dome high frequency driver mated to a shallow wave guide for consistent HF distribution.

When coupled with the Zone series, a ZonePad and the WebApp makes setting up a system and end user control simple and intuitive.

Specifications

TYPETwo-way, full range, passive 5” loudspeaker
FREQUENCY RESPONSE (with preset)97Hz – 20kHz +/-3dB,
-10dB @ 80Hz
DRIVERSLF: 5.25”(133mm) coated paper, ferrite motor system
HF: 0.75” (19mm) Silk Dome, neodymium motor system
IP RATINGIP54 when used with accessory terminal cover
RATED POWER50 W (AES) 200W (peak)
NOMINAL IMPEDANCE8 Ohms
SENSITIVITY (1W/1m)88dB
MAXIMUM SPL105dB (cont) 111dB (peak)
CROSSOVER2.5kHz
RECOMMENDED HIGH PASS FILTER24dB Per Octave @ 70 Hz
DISPERSION (-6dB)150°H x 100°V
ENCLOSUREABS
FINISHPaint
PROTECTIVE GRILLEPainted Aluminium
CONNECTORS4 pin Euroblock
PIN CONNECTIONS (INPUT)Positive and negative in with link out terminals
FITTINGSM4 mounting points for wall bracket
DIMENSIONS(W)155mm x (H)255mm x (D)150mm
(W)6.1” x (H)10” x (D)5.9”
WEIGHT2.15kg (4.7lb)

Drawings

Accessories

  • Weatherproof Terminal Cover (available separately)
