D80 amplifier

Call for price

High power four channel amplifier

  • Maximum output power 4 x 4000 W into 4 Ω
  • All current d&b loudspeaker setups
  • Display Colour TFT touchscreen, 3.5″/320 x 240 pixel

Buy product

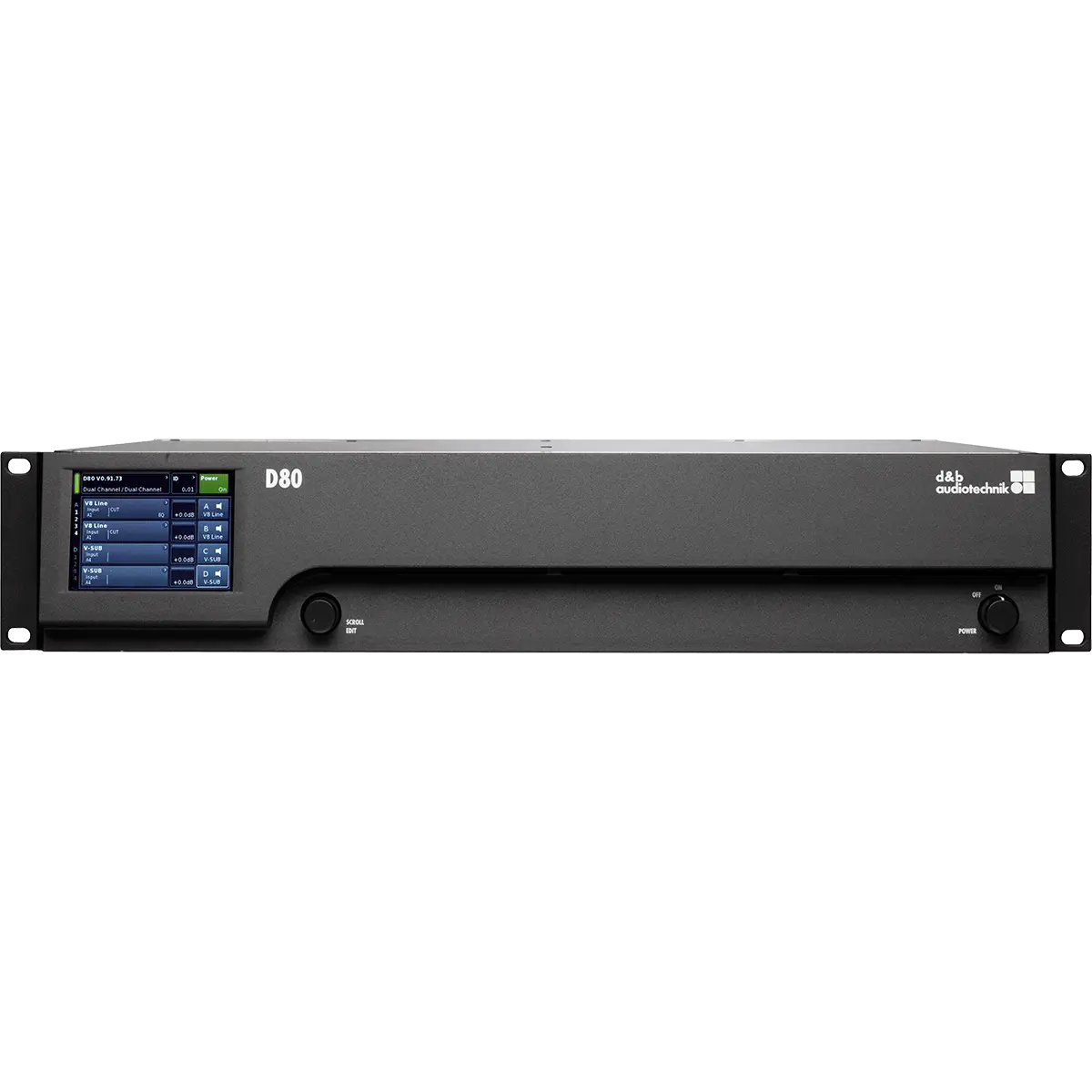

The 2 RU four channel D80 amplifier is a high power density amplifier, ideally suited for use in both mobile and installation environments. It contains configurations for all d&b loudspeakers and a linear mode. The signal delay capability enables user definable settings of up to 10 s (= 3440 m/11286 ft) to be applied independently to each channel. The same applies to the two 16-band equalizers, providing optional parametric, asymmetric, shelving or notch filtering. The D80 incorporates a colour TFT touchscreen, offering quick access to the menu structure, while the rotary encoder can be used for fine adjustment. The front panel and the integrated touchscreen of the D80 amplifier is tilted up for ease of operation when the amplifier is below eye level. The equal ratio of signal input to amplifier output channels increases the application flexibility particularly for monitor, frontfill or effect channel use. The LoadMatch function integrated within the D80 amplifier enables the electrical compensation of loudspeaker cable properties, without the need for an extra conductor. This results in an increased accuracy of audio reproduction over a bandwidth of up to 20 kHz, preserving the tonal balance when cable lengths of up to 70 m (230 ft) are used. The D80 incorporates Class D amplifiers utilizing a power supply with active Power Factor Correction (PFC) suitable for mains voltages 100 V/120 V/200 V/230 V, 50 – 60 Hz and maintains a stable output when used with weak or unstable mains supplies. An NL8 provides all outputs on a single connector, while individual outputs are optionally NL4 or EP5 connectors. RJ 45 and etherCON connectors enable access to the d&b Remote network via CAN-Bus and OCA/AES70 via Ethernet respectively.

The D80 Touring racks

The D80 Touring racks are designed as fully equipped and prewired system racks, providing mains power distribution, connector interfaces and all internal cabling for either three or six D80 amplifiers.

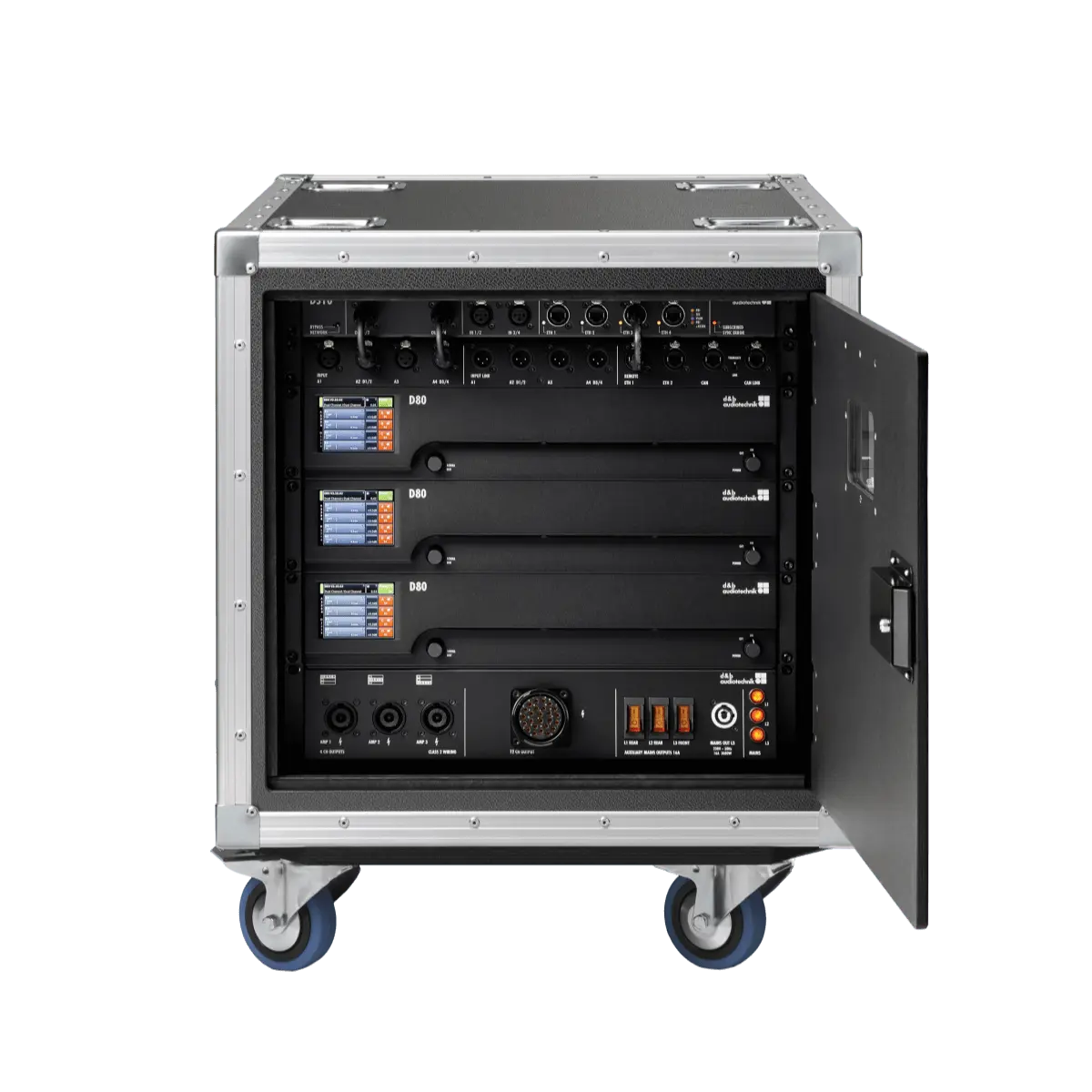

The 3 x D80 Touring rack is available with either a 32 A CEE mains power connector with a 32 A mains link or one 30 A NEMA mains socket, and a loudspeaker connector panel with three NL8 (4 channel) and one LKA25 (12 channel) loudspeaker outputs. Electrically interlocked auxiliary mains outputs (powerCON1 16 A sockets) are provided to power the DS10 and other low current devices such as laptops.

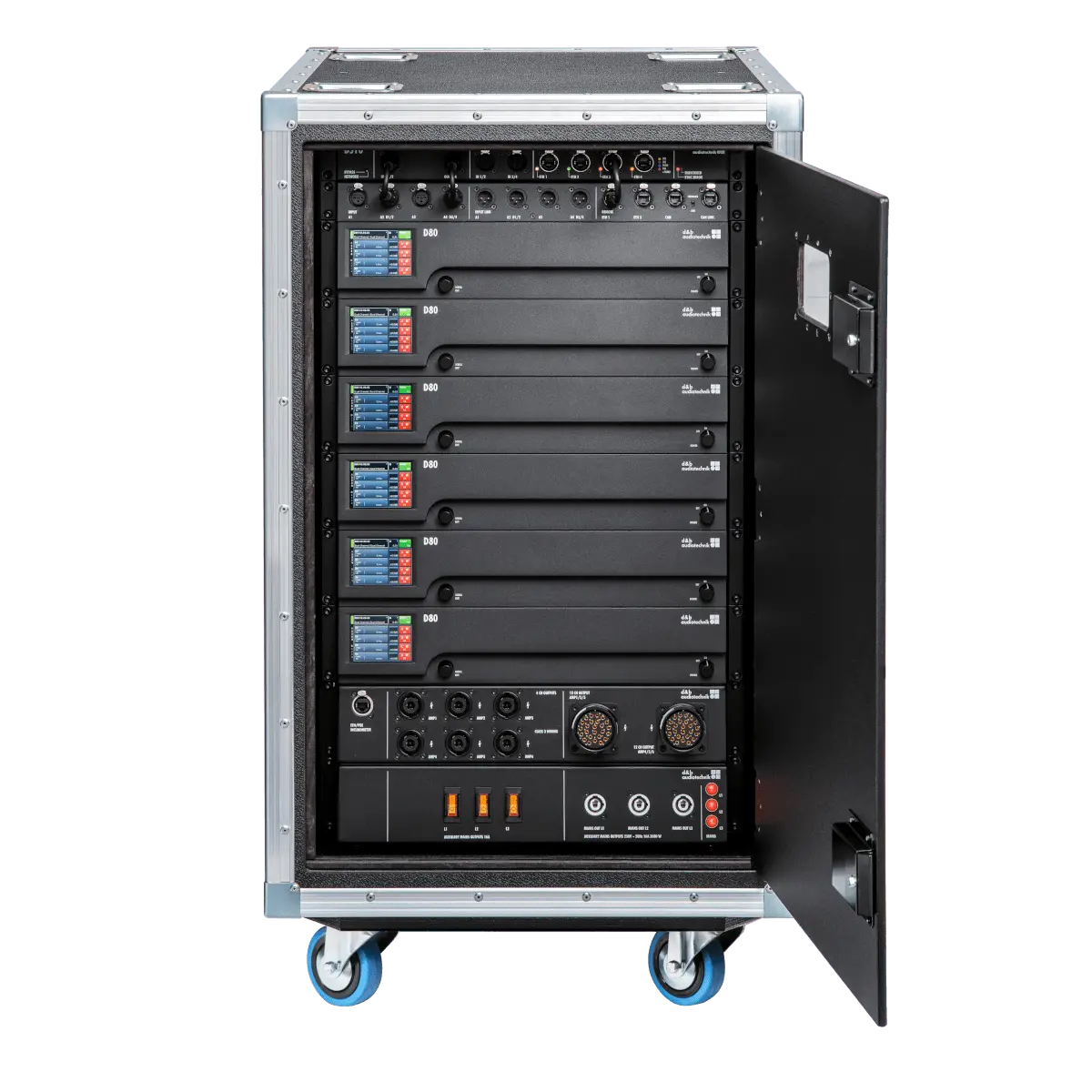

The 6 x D80 Touring rack is available with either a single 32 A CEE mains power distribution panel, or a dual 30 A NEMA mains power distribution panel. Electrically interlocked auxiliary mains outputs (powerCON1 16 A sockets) are provided to power the DS10 and other low current devices such as laptops. The 2 RU loudspeaker connector panel of the 6 x D80 Touring rack assembly provides six NL8 (4 channel) and two LKA25 (12 channel) loudspeaker outputs. This loudspeaker connector panel is also equipped with a Power over Ethernet (POE) socket to connect and power an inclinometer.

The DS10 Audio network bridge delivers 16 AES3 outputs to the D80 amplifiers via the Dante audio transport protocol over Ethernet, while also providing distribution of control data. It incorporates an integrated 5-port switch, offering a primary and redundant network for the Dante protocol, as well as advanced functions such as Multicast Filtering and VLAN modes. This extensive switch flexibility provides extended connectivity for a laptop to control the d&b amplifiers using the R1 Remote control software via the OCA (Open Control Architecture) protocol. Using the DS10 Audio network bridge, audio signals and remote control data can be combined using a single Ethernet cable. The front panel of the DS10 is designed to align with the input panel of the D80 Touring rack assembly.

The 19” internal shockmount steel frames also accommodates an I/O panel providing both analog and digital audio signals as well as four network connectors for either Ethernet or CAN-Bus remote networking. The 3 x D80 Touring rack is provided with either a DS10 Audio network bridge, which comes supplied with all necessary cabling, or a 1 RU drawer. The DS10 Audio network bridge is provided in the 6 x D80 Touring rack as standard.

The DS10 Rack upgrade kit contains everything required to replace the drawer within the D80 Touring rack assembly with a DS10. This kit includes a DS10 Audio network bridge, a powerCON1 to powerCON1 mains cable, an Ethernet patch cable and two AES3 XLR patch cables.

The MC24 multicore
Large line array systems require an efficient multicore solution, especially when each loudspeaker in an array is driven individually with ArrayProcessing. The d&b MC24 multicore system is designed specifically for use with the D80 Touring racks. It provides 12 amplification channels (24 lines 4 mm2) with an LKA25 F/M connector, delivering 12 channels in Dual Channel mode, or 6 channels in 2-Way Active mode and Mix TOP/SUB mode. The reinforced cable, heavy duty mesh cable gland and bayonet clutch within the LKA25 connector improves handling and reliability. A single 6 x D80 Touring rack can drive up to 12 SL-Series or J-Series cabinets in ArrayProcessing, or 24 KSL / J  Top TOP cabinets in standard mode with linked loudspeakers. Up to 24 T, Y or V-Series line array loudspeakers can be driven with ArrayProcessing from a single amplifier rack, while a total of 48 Y-Series or V-Series line array modules can be driven in standard mode with linked loudspeakers. Adapters are available to break-out from the multicore cable to the individual NLT4 inputs of the loudspeakers. A break-in option is available to adapt an NL8 amplifier output to a MC24 multicore. All d&b Touring racks come fully assembled, prewired and tested.

1 powerCON® is a registered trademarks of Neutrik AG, Liechtenstein.
