Van Damme Blue Series Studio Grade Up-ofc Pre-jacketed Multicore

Call for price

ANALOGUE AUDIO

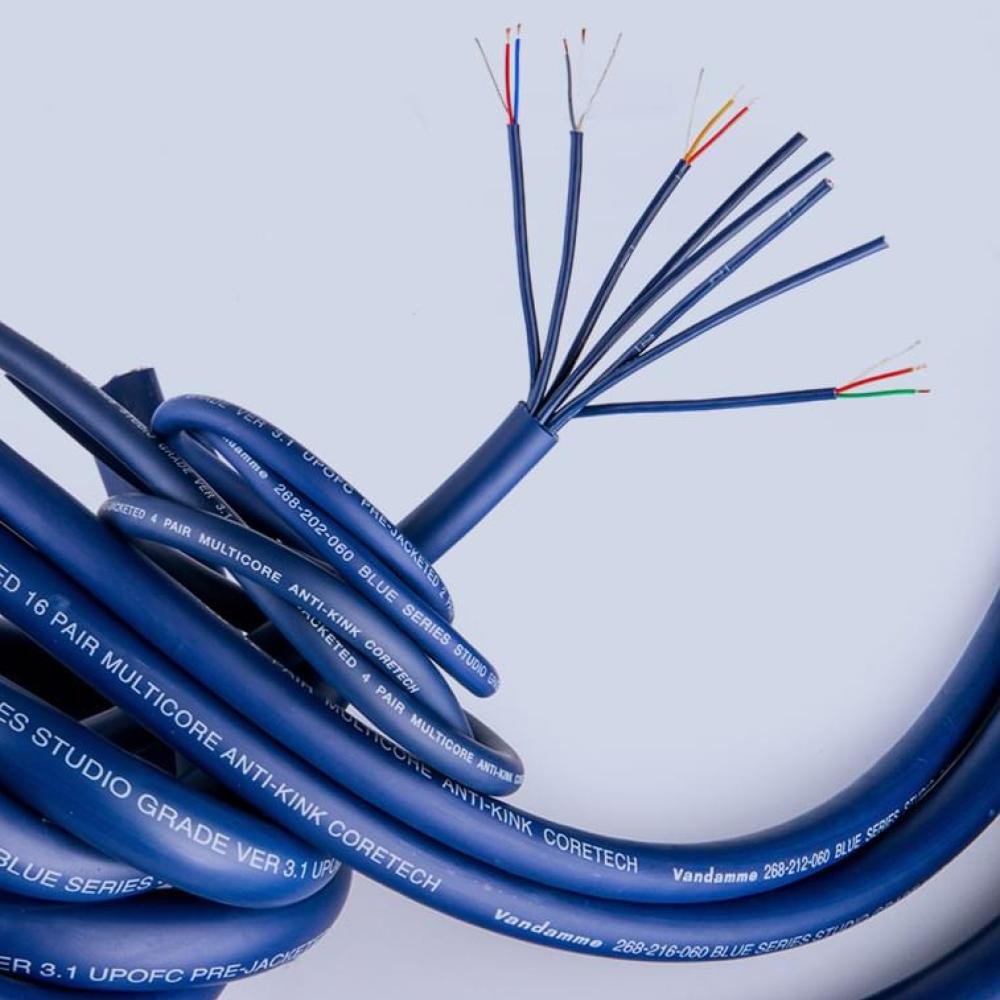

This is the analogue pre-jacketed cable of choice for the professional user. Extremely flexible, sonically transparent and intelligently designed with both numbered and colour coded pairs. This cable more than satisfies the rigorous demands of studio engineers, installers and manufacturers. It has been extensively utilised in studios around the world from the BBC to Abbey Road.

SKU: Pre-jacketed Multicore Category: Tags: , , ,

Description

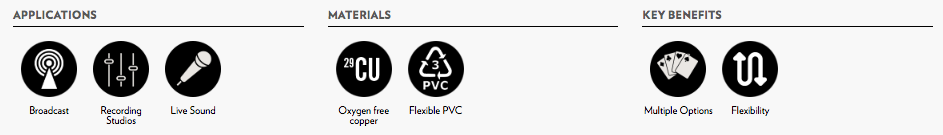

APPLICATIONS

Audio multicore looms for 2 – 48 pairs. Multipin breakout cables. Fixed installations in areas not requiring Low Smoke Zero Halogen cables. Recording and post production equipment interconnects. Wiring of B Gauge & Bantam patchbays where individual screens are required.

Part Nos. & Description

Part NumberDescriptionOverall Diameter (mm)Max. Reel Length
268-202-060Van Damme Blue Series Studio Grade 2 pair multicore7.50500m
268-204-060Van Damme Blue Series Studio Grade 4 pair multicore9.60500m
268-208-060Van Damme Blue Series Studio Grade 8 pair multicore12.20500m
268-212-060Van Damme Blue Series Studio Grade 12 pair multicore14.30500m
268-216-060Van Damme Blue Series Studio Grade 16 pair multicore16.30500m
268-224-060Van Damme Blue Series Studio Grade 24 pair multicore20.80500m
268-232-060Van Damme Blue Series Studio Grade 32 pair multicore22.10500m
268-248-090Van Damme Blue Series Studio Grade 48 pair multicore26.30500m

Mechanical Specification

Conductors28 x 0.10 mm bare ultra-pure oxygen-free copper
Conductor size28 x 0.10 mm, 0.22 mm2, AWG 24/28
InsulationPolypropylene
Screen type24 µm Aluminium/Polyester Foil >150% coverage
Pair jacketPVC composite Sapphire Blue RAL 5003
Drain wire19 x 0.12 mm tinned ultra-pure oxygen-free copper
Overall Construction
Jacket materialFlexible PVC composite Sapphire Blue RAL 5003
Bend Radius10 x overall diameter

Electrical Specification

ResistanceConductor< 90 Ohm/km
Insulation> 5000 MOhm/km
CapacitanceCore to core
Core to screen
100 pF/m
200 pF/m



DOWNLOADS

Additional information

Cable Name

Van Damme Blue Series Studio Grade 4 pair multicore
