18S subwoofer

Call for price

Subwoofers

Installation specific compact subwoofer

  • Components 18″
  • Dispersion Omni directional
  • SPLmax 132 dB
  • Weight 32 kg / 71 lb

Buy product

Description

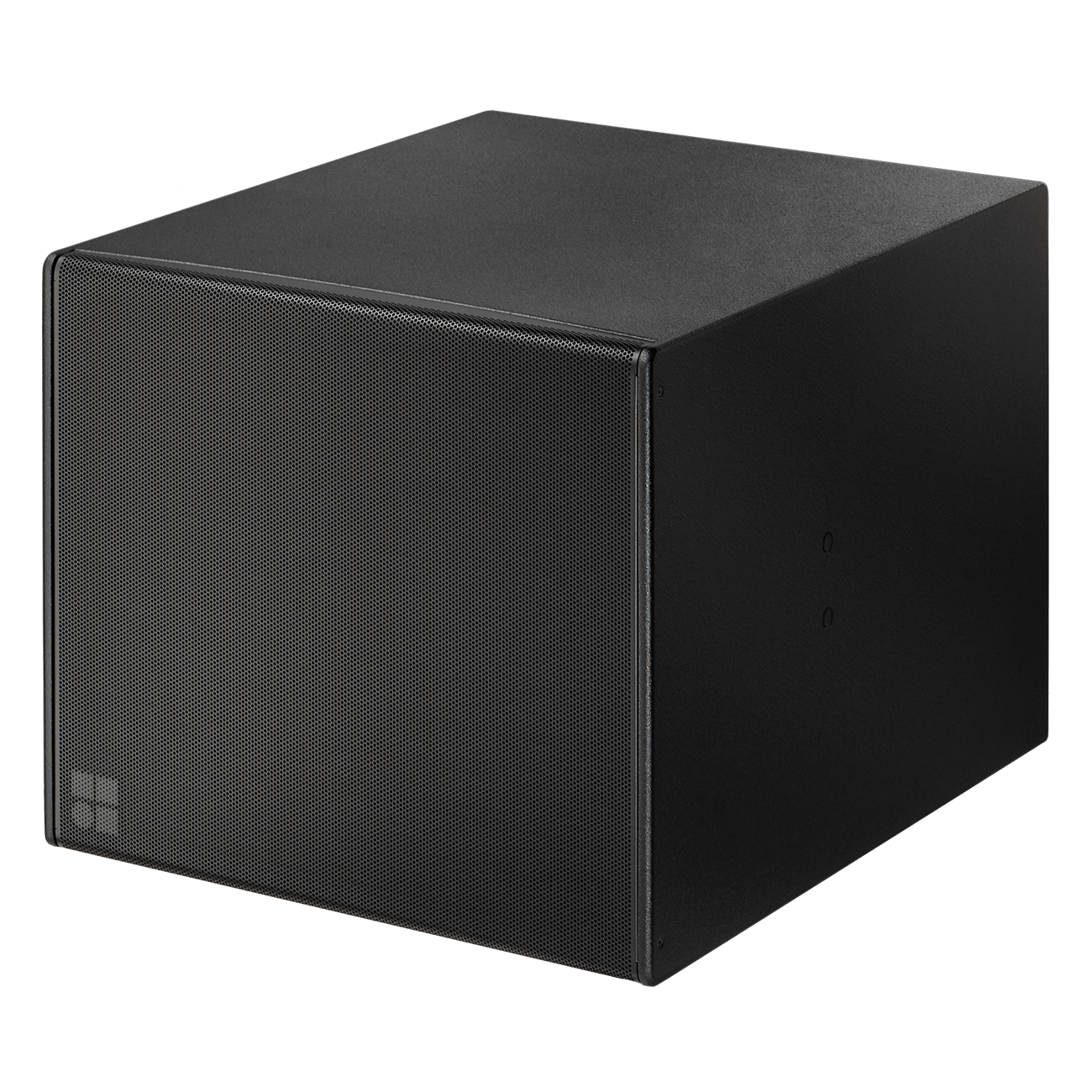

The 18S-SUB is a compact high performance subwoofer for use with the xS-Series and xA-Series loudspeakers. The cabinet houses a long excursion 18″ neodymium driver in a bass-reflex design and it can be used stand-alone, stacked or individually flown. The enclosure is constructed from marine plywood with an impact resistant black paint finish and is Ball Impact Resistant according to DIN 18032-3 for schools and sports halls. The front of the loudspeaker cabinet is protected by a rigid metal grill backed by an acoustically transparent foam. Incorporated into the side panels are a pair of M10 threaded inserts and into the rear panel are two NL4 connectors as well as a two pole screw terminal block. The loudspeaker cabinets and most accessories are also available with the Special Colour (SC) option that can be executed in all RAL colours, whilst the Weather Resistant (WR) option provides an IP55 rating, and enables operation of loudspeakers in changing ambient conditions.

Amplifiers

The d&b 30D amplifier is recommended to drive the 18S-SUB. The d&b D20, D80, 10D and D6 can also be used.

Architectural specifications for detailed project planning

Do you require architectural specifications? For a d&b system or a specific d&b Series? Here are the most important technical specifications ready for download.
